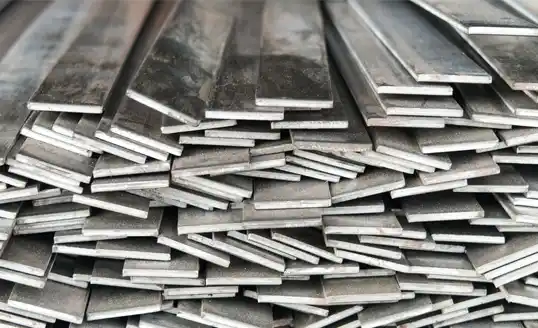

MS Flat Bars
Our flat bars are of the finest quality manufactured with the latest scientific technologies and high grade raw materials. They are highly recommended for durability, high tensile strength. These are widely used in various automotive and electrical industries for paneling & Hosehold widow grill & Gates.
ISI -2062-2006 GRADE : E250A
Section Weight
| Thickness in mm | 3 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 20 | 22 | 25 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 0.3 | 0.5 | 0.6 | 0.8 | 0.9 | 1.1 | 1.5 | 1.7 | 1.9 | 2.1 | 2.4 |
| 16 | * | 0.6 | 0.8 | 1.0 | 1.3 | 1.5 | 2.0 | 2.3 | 2.5 | 2.8 | 3.1 |
| 20 | 0.6 | 0.8 | 0.9 | 1.3 | 1.6 | 1.9 | 2.5 | 2.8 | 3.1 | 3.5 | 3.9 |
| 25 | 0.8 | 1.0 | 1.2 | 1.6 | 2.0 | 2.4 | 3.1 | 3.5 | 3.9 | 4.3 | 4.9 |
| 32 | 1.1 | 1.3 | 1.5 | 2.0 | 2.4 | 3.0 | 4.0 | 4.5 | 5.0 | 5.5 | 6.3 |
| 35 | * | * | 1.6 | * | 2.8 | * | * | * | * | * | * |
| 40 | 1.4 | 1.6 | 1.9 | 2.5 | 3.1 | 3.8 | 5.0 | 5.7 | 6.3 | 6.9 | 7.8 |
| 45 | * | * | 2.1 | * | 3.5 | 4.2 | * | * | * | * | * |
| 50 | 1.7 | 2.0 | 2.4 | 3.1 | 3.9 | 4.7 | 6.3 | 7.1 | 7.8 | 8.6 | 9.8 |
| 53 | * | * | * | * | * | * | 6.6 | * | * | * | * |
| 56 | * | * | * | * | * | * | 7.0 | * | * | * | * |
| 63 | * | 2.5 | 3.0 | 4.0 | 4.9 | 5.9 | 7.9 | 8.9 | 9.9 | 10.9 | 12.4 |
| 65 | * | * | * | 4.1 | 5.1 | 6.1 | * | * | 10.2 | * | * |
| 75 | * | * | * | 4.7 | 5.9 | 7.1 | * | * | 11.8 | * | 14.7 |
| 80 | * | 3.1 | 3.8 | 5.0 | 6.3 | 7.8 | 10.0 | 11.3 | 12.5 | 13.8 | 15.7 |
| 100 | * | 3.9 | 4.7 | 6.3 | 7.8 | 9.4 | 12.6 | 14.0 | 15.7 | 17.5 | 19.6 |
| 110 | * | * | * | * | * | * | * | * | 17.3 | * | * |
| 125 | * | 4.9 | 5.9 | 7.8 | 9.8 | 11.8 | 15.7 | 17.7 | 19.6 | 21.6 | 25.5 |
| 150 | * | * | * | * | * | 14.1 | * | 18.8 | 23.6 | * | 29.4 |
| 160 | * | 6.3 | 7.5 | 10.0 | 12.6 | 15.1 | 20.1 | 22.6 | 25.1 | 27.6 | 31.4 |
| 180 | * | * | * | * | * | 17.0 | 22.6 | 25.4 | 28.3 | * | * |
| 200 | * | 7.8 | 9.4 | 12.6 | 15.7 | 18.8 | 25.1 | 28.3 | 31.4 | 34.5 | 39.2 |
| 220 | * | * | * | * | * | * | * | * | 34.5 | * | * |
